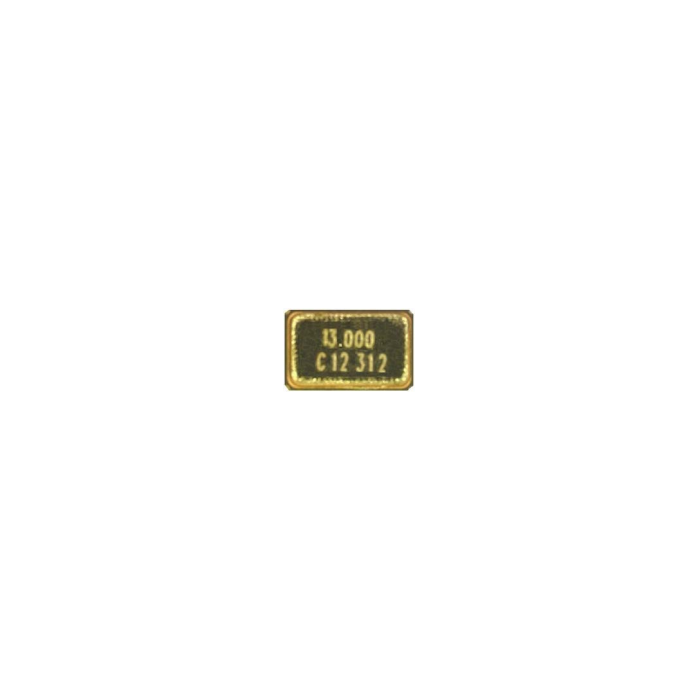

Name: 406C35B13M00000
Price: 0.42 USD
Availability: OutOfStock

Device Attribute	Attribute Value	Select Attribute
New Product	Yes
Capacity	13pF
ESR	60 Ohms Max.
Frequency Stability	±50ppm
Frequency Tolerance	±30ppm
Operating Mode	FUNDAMENTAL
Package Casing	Ceramic
Featured Description	CTS' Model 406 Series surface mount quartz crystal features: Standard 6.0mm x 3.5mm Ceramic Surface Mount Package Fundamental Crystal Design Frequency Range 8 – 50 MHz Frequency Tolerance ±30 ppm Standard [other tolerances available] Frequency Stability ±50 ppm Standard [other stabilities available] Operating Temperature to -40°C to +85°C Stable Frequency Over Temperature and Drive Level Tape & Reel Packaging Standard EIA-481 RoHS/Green Compliant (6/6). Applications include wireless communications broadband access WLAN/WiMax/WIFI portable equipment test and measurement PCMCIA computers and modems.
Product Category	General Crystals
Frequency	13 MHz
Operating Temperature	-20°C to +70°C
Package Size (W x L)	6.00mm x 3.50mm
Mounting Style	Surface Mount
Termination	4 Pad
Packaging	Tape and Reel
Package Height	1.20mm
Package Type	3 x 6
Manufacturer	CTS Corporation
Notice Message	Statek devices are csutom and made to order.Manufacturer part number:CXOX4ESM3-50.0M -/-/50/M has been previously manufactured and is available for quoting
Custom Service	Yes
Lead Free	Yes
Rohs	Yes
Part Series	406

406C35B13M00000
